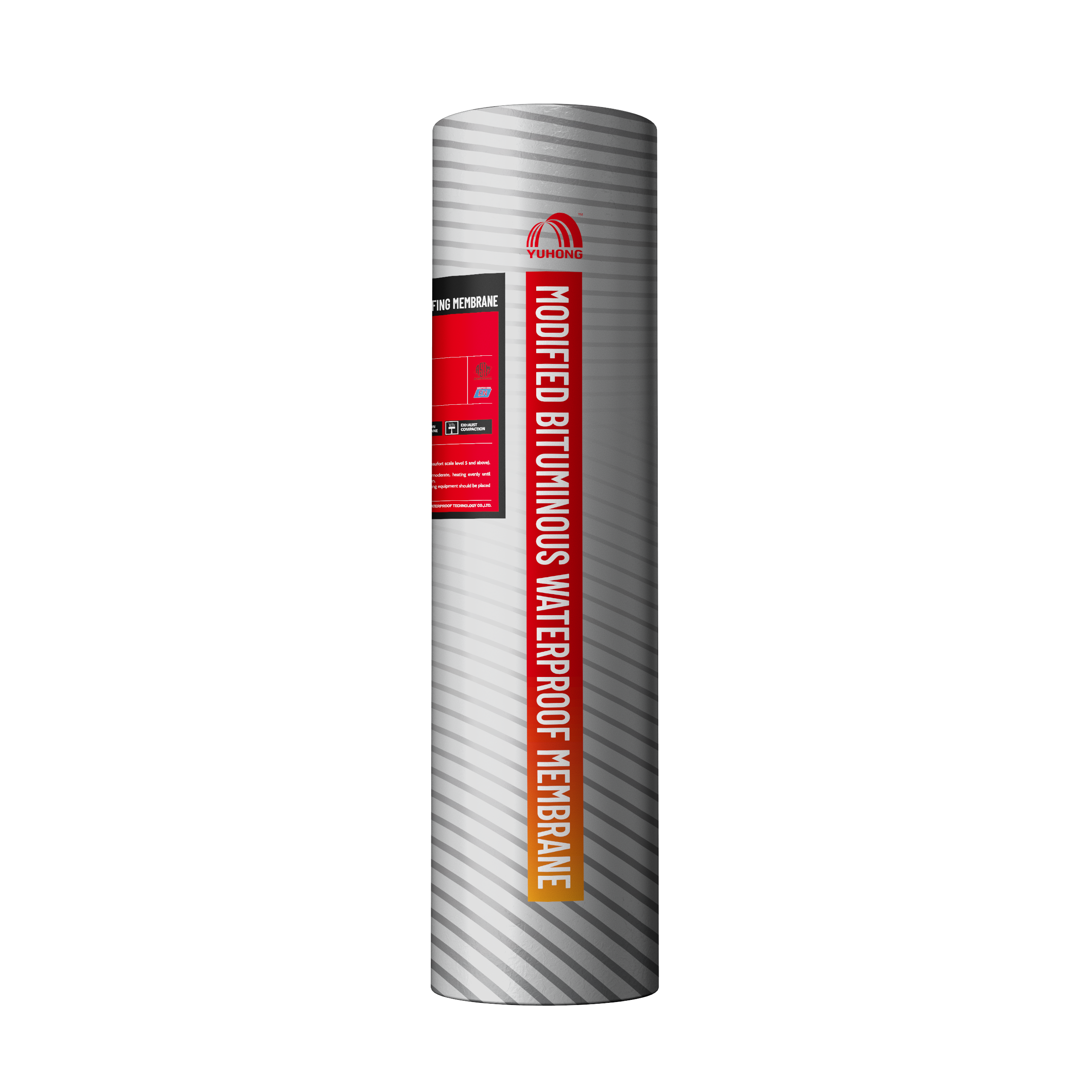

YUHONG^™ YHShield-7411US M

SBS Modified Bituminous Waterproof Membrane

YHShield-7411US is a high performance, torch- on preformed bituminous waterproofing membrane reinforced with polyester layer. The bitumen is mixed with polymer modified fillers which provide better anti-aging performance and higher resistance to extreme temperature. YHShield-7411US is either faced with polyethylene film for non-exposed application or mineral aggregates for exposed application. The unique mineral surface ensures excellent protection against ultraviolet rays.

Product Specifications

Packaging

Roll
Width (m)

1
Thickness [mils (mm)]

149.6(3.8)
Thickness @ selvage[mils (mm)]

118(3.0)
Length (m)

10
Netmass per unit area[lb/100ft 2 (g/m2 )]

110(5370)
Roll Size (m2 /roll)

10
Upper Surface Material

Mineral granules (M)-Grey
Lower Surface Material

Polyethylene film (PE)

Show More Show Less

Core Advantages

High-quality modified compounds with select grades of refined asphalt contribute to durability, flexibility, and strength.
Excellent resistance to hydrostatic water.
High temperature stability and low temperature flexibility.
Good resistance to mechanical impact.
Elongation properties and flexibility help resist thermal and structural movement, even in cold temperatures, contributing to the longevity of your roofing system.
Good dimensional stability.

Applicable Acenarios

Waterproofing and damp-proofing of basements subject to permanent water submersion and damp soils, including pile capping and foundations.
Waterproofing of retaining walls.
Waterproofing on flat roofs under protective layers or ballast.
Waterproofing on balconies, terraces and wet rooms under screed / tiles.
Exposed waterproof membrane with opaque mineral granules as upper surface isolation material is used.
